Analysis Tools - Selecting a Tool
Selecting an Analysis Tool
See also section "Using Analysis Tools" in chapter 1, "SRS Quick Tour", of the SRS User Guide and chapter 6, "Analysis Tools" , of the SRS User Guide for examples of this page in use.
Note:This page can be used after selecting an existing query, in which case, only the appropriate analysis tools will appear. However, you can also go directly to this page from the Select Databanks To Search page, in which case, all analysis tools that are available to you will be shown, but any data, e.g. sequence information will have to be entered on the Launch page manually.
More about the Tool Select page.
Tool Select Page - Reference

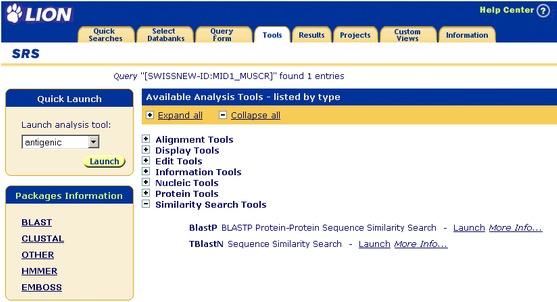

Figure 6.1 Tool Select page.
Getting to the Tool Select Page
This page can be reached by pressing the
button, typically from a Query Results page after selecting one or more entries.
Options Area
Quick Launch
This area contains a drop-down list of the available analysis tools. You can select a tool from here and click the
button, as an alternative to choosing the tool from the data area.
Packages Information
This area lists the packages that are currently available to you. Clicking on one of the packages - e.g., EMBOSS takes you to the relevant Tool Package page.
Query
This shows the entry or entries that were selected (on the Query Result page) on which the chosen analysis tool will be run:
Data Area
Expand All / Collapse All
Click the
or the
above the list of analysis tools to show or hide all of the analysis tools. When the analysis tools are hidden, only the analysis tool group names will be visible. It is also possible to click on the or beside an individual group to expand or collapse that group.
Tools
This area contains lists of the available analysis tools. These are grouped according to their type. The groups are intended to help the user to choose an appropriate analysis tool. Within each tool group, there is a list of subgroups (when appropriate). The tools themselves are listed within the groups / subgroups.
Each analysis tool has a hyperlink leading to the Launch page for that tool. Each tool also has a hyperlink for more information on that tool, taking you to the relevant Tool Details page.
